1 Circuit, 2 Circuit 2 Split, 3 Split Interlock Plug
Fare clic sull'immagine per ingrandirla.
Cliccare sull´immagine per ingrandirla.
- Sconto volumi elevati
This is safety equipment mounted on safety doors and machines which prevents accidents caused by doors and machines being turned on carelessly.
Standard Japanese manufactured products that are widely used by major automobile and steel manufacturers
Standard Japanese manufactured products that are widely used by major automobile and steel manufacturers
● This can be installed at an entrance door of a dangerous area, and is used with a setting that turns off power when a plug is removed

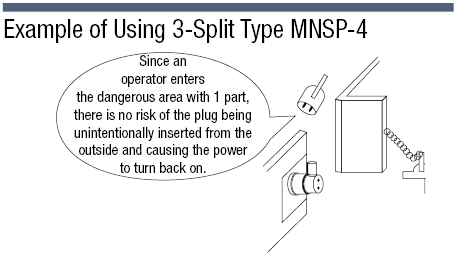

● 3-split type is made more secure by having the operator to carry one of the parts (see figure below)
· It cannot be used in a location where there is severe vibration or shock, or a significant amount of dust, mist or corrosive gas.
· Do not mount downward as there is a risk of dropout.
· Do not insert or remove while power is on other than in emergency. It may shorten the contact life.
· Take precautions in case the driving source is blocked by pulling out the plug. (such as an electromagnetic brake)
· Do not configure the emergency stop circuit only by using this product. The emergency stop state may be canceled simply by inserting the plug, causing danger.
· Mount in a position where water and oil do not reach.
· After the plug is disconnected, do not touch the charged portion of the socket.
Codice componente
Qui sono indicati i codici componente
correlati al prodotto ricercato
Specifiche

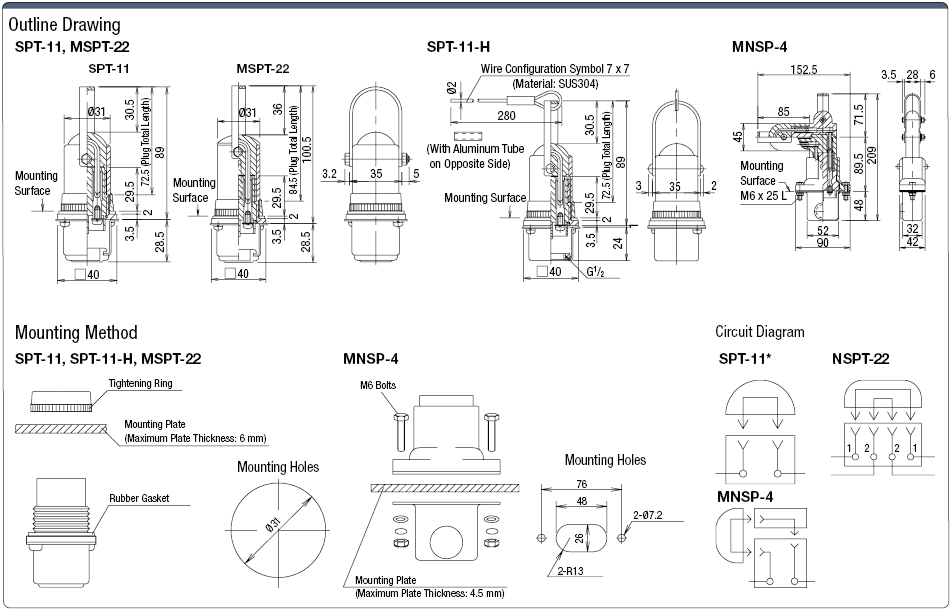

| Part Number | Number of Circuits | Number of Split | Wire for Hanging |
| SPT-11 | 1-Circuit | 2-split | Not Provided |
| SPT-11-H | Included | ||
| MSPT-22 | 2-Circuit | Not Provided | |
| MNSP-4 | 1-Circuit | 3-split |
Più Informazioni
| Part Number | Rating | Insulation Resistance | Withstand Voltage V | Contact Resistance | Electrical Life Cycles or More | Place of Use | Operating Temperature Range | Wiring Terminals | Maximum Mounting Plate Thickness | Mass approx. g | ||
| Between Charging Metal Part and Non-Charging Metal Part | Between Same-Pole Terminals in Open Circuit Condition | Between Charging Metal Part and Non-Charging Metal Part | Between Same-Pole Terminals in Open Circuit Condition | |||||||||
| SPT-11 | 250 VAC 15A (Min 24 V 5 mA) | 100 MΩ or more (500 VDC) | 1500 | 50 MΩ or less | 5000 | Indoor | -5 ~ +60°C | 2 x M4 | 6mm | 210 | ||
| SPT-11-H | 215 | |||||||||||
| MSPT-22 | 4 x M4 | 235 | ||||||||||
| MNSP-4 | 600 VAC 30A (Min 24 V 10mA) | 100 MΩ or more (1000 VDC) | 2200 | 2000 | 2 x M4 | 4.5mm | 570 | |||||
Informazioni di base
| Material | Steel Plate | Paint Surface Processing | Uniclo (Trivalent Chromate) Plating |
|---|
Configura
Proprietà di base
Filtrare per giorni di spedizione standard
-
- Tutti gli articoli
- 5 giorni o meno
Attributi opzionali
- Specifiche e dimensioni di alcuni componenti potrebbero non essere illustrate in modo esauriente. Per i dettagli esatti, consultare i cataloghi dei produttori .
